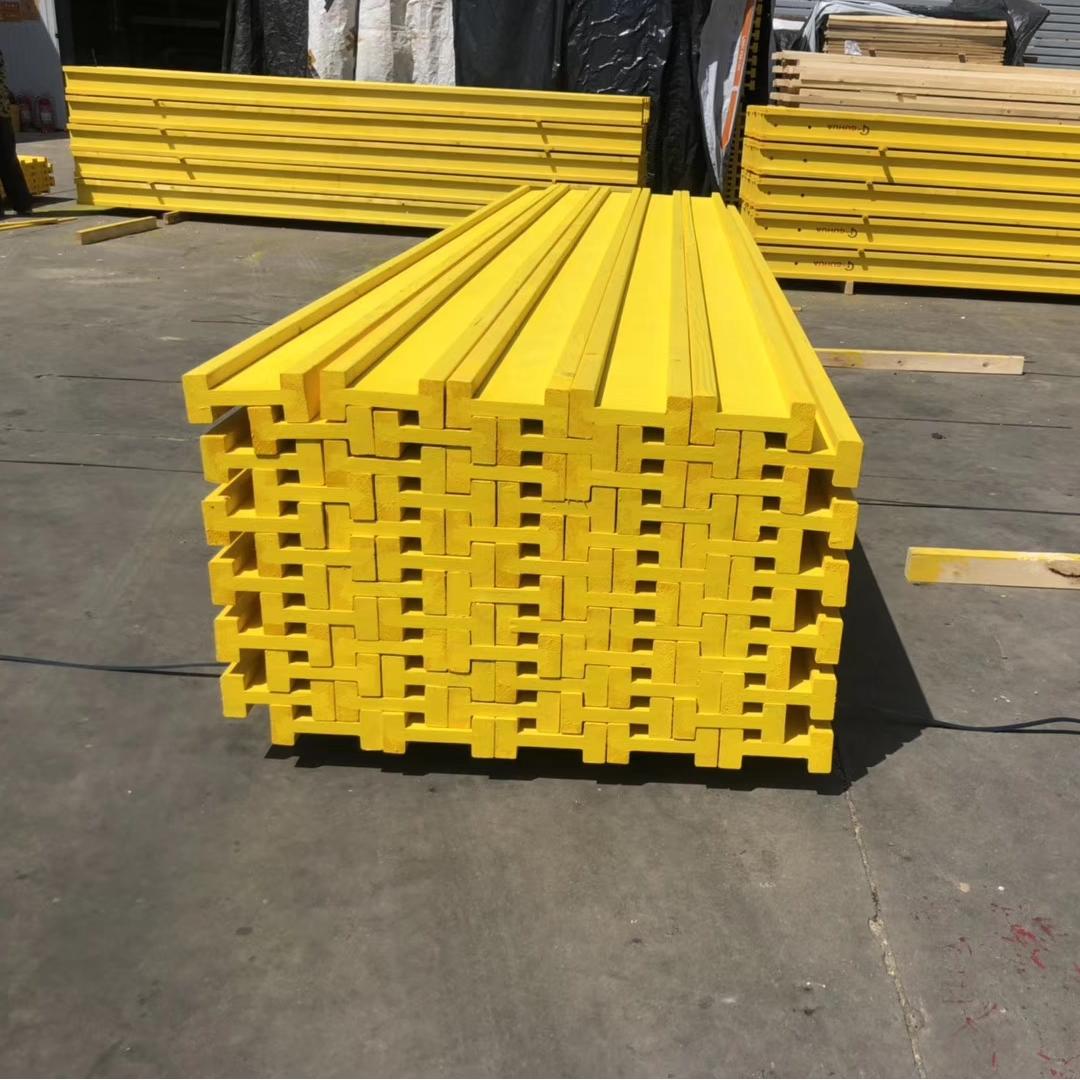

Waterproof Construction Formwork Structural LVL Spruce Plywood H20 Wood Timber Beam I Joist For Slap

Type

concrete formwork

Product name

H20 timber beam

Flange Material

European spruce wood

Web:material

27mm plywood

Standard

EN13377:2002

Weight

4.8kgs/m

MOQ

1x20GP

Package

pallet

Standard Size

20cm(height)×8cm(width)×4cm(flange thickness)×27mm(web thickness)

Length

from 1m to 6m

Material

Flange :spruce wood , Web:poplar plywood

Surface Treatment

antispetic & water-proof yellow painting

Weight

4.8kgs/m

Other size

H12,H16

Shear Resistance

37.22KN

Bending Resistance

19.77KN

Bearing Resistance

63.3KN

Bending Stiffness

46KNm²

    Features

       [Product Features]
    1. High stiffness ,light weight,strong load-carrying capability
    2.Reduction of props quantity ,enlargement of the span between props and working spaces
    3.Simple assembly and disassembly ,flexible application,easy operation on site
    4.All connectors with high standardization ,strong generality and fast operation 5.Low cost ,high durability

    Company Information

    ShandongJike Wood Co., Ltd is a medium scale private enterprise invested in Linyi, Shandong,which found in the year 2006.Our company have more than 200 workers and the yearly turnover is more than RMB100,000,000 .The company engaged in manufacturing panel product such as building material products, decoration product, furniture product and etc. Our products are mainly export to Europe, America, Southeast Asia and other markets. We obtained the CARB P2 CERT and FSC COC CERT in the year 2012 and 2014.
    Our marketing concepts: with spirit of honesty, supplying consistence quality, focused on customer satisfaction, in order to constantly optimize the team.
    Our vision: to grow as a leader in the industry
    Our mission: to supply consistence quality panel at the right time
    Company has established a control system by refer to ISO international quality standards, the Japanese JAS standards and the European Union CE certification standards on the quality requirements. These complete control system would cover the aspect from raw material purchasing, the processing process (semi-finished products), quality assurance, product security, storage till the product leave the premises.
    We are warmly welcome customers (either home and abroad) come to visit our factory. Let us corporate and develop further with a mutual benefit for each other .

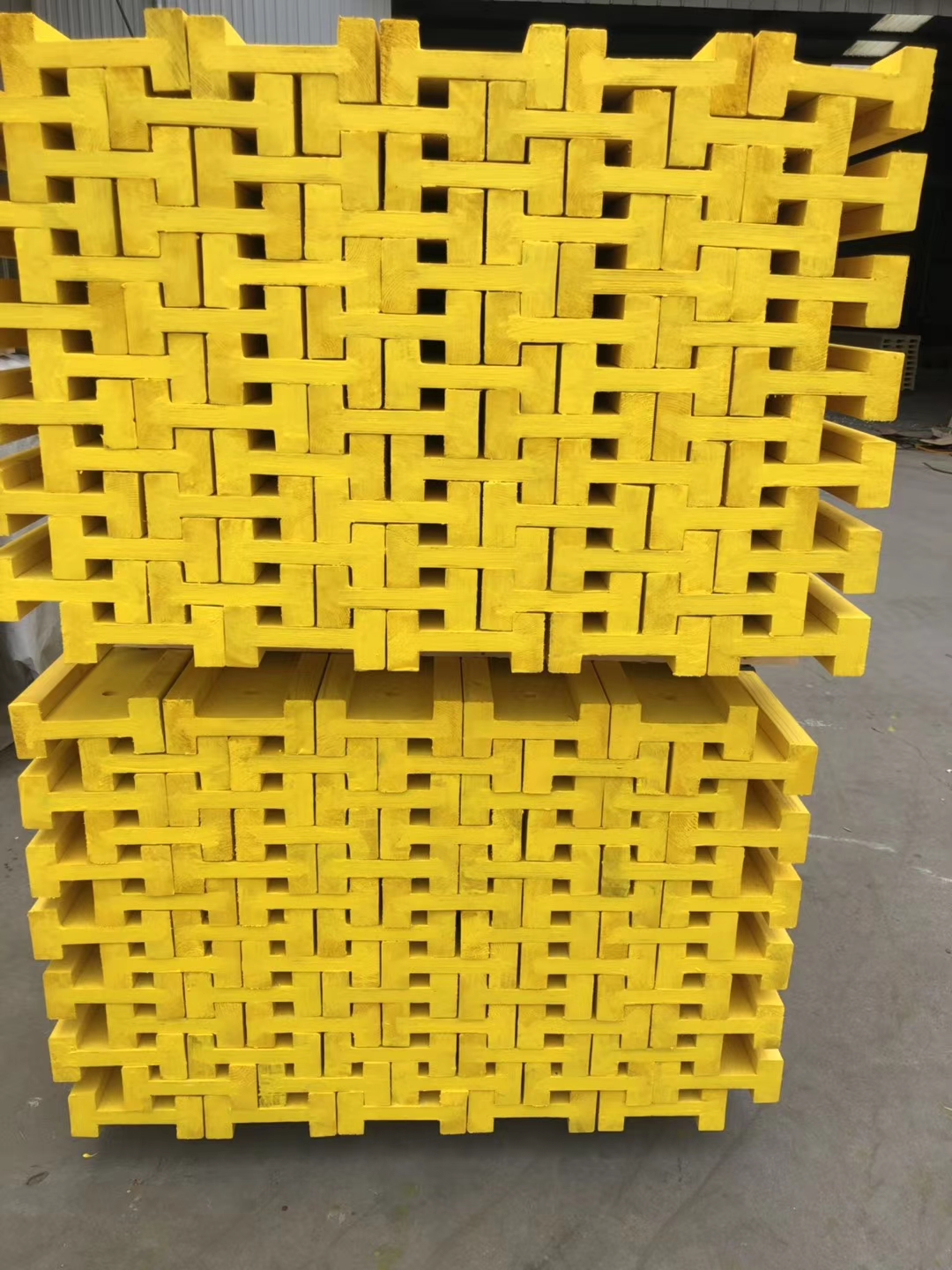

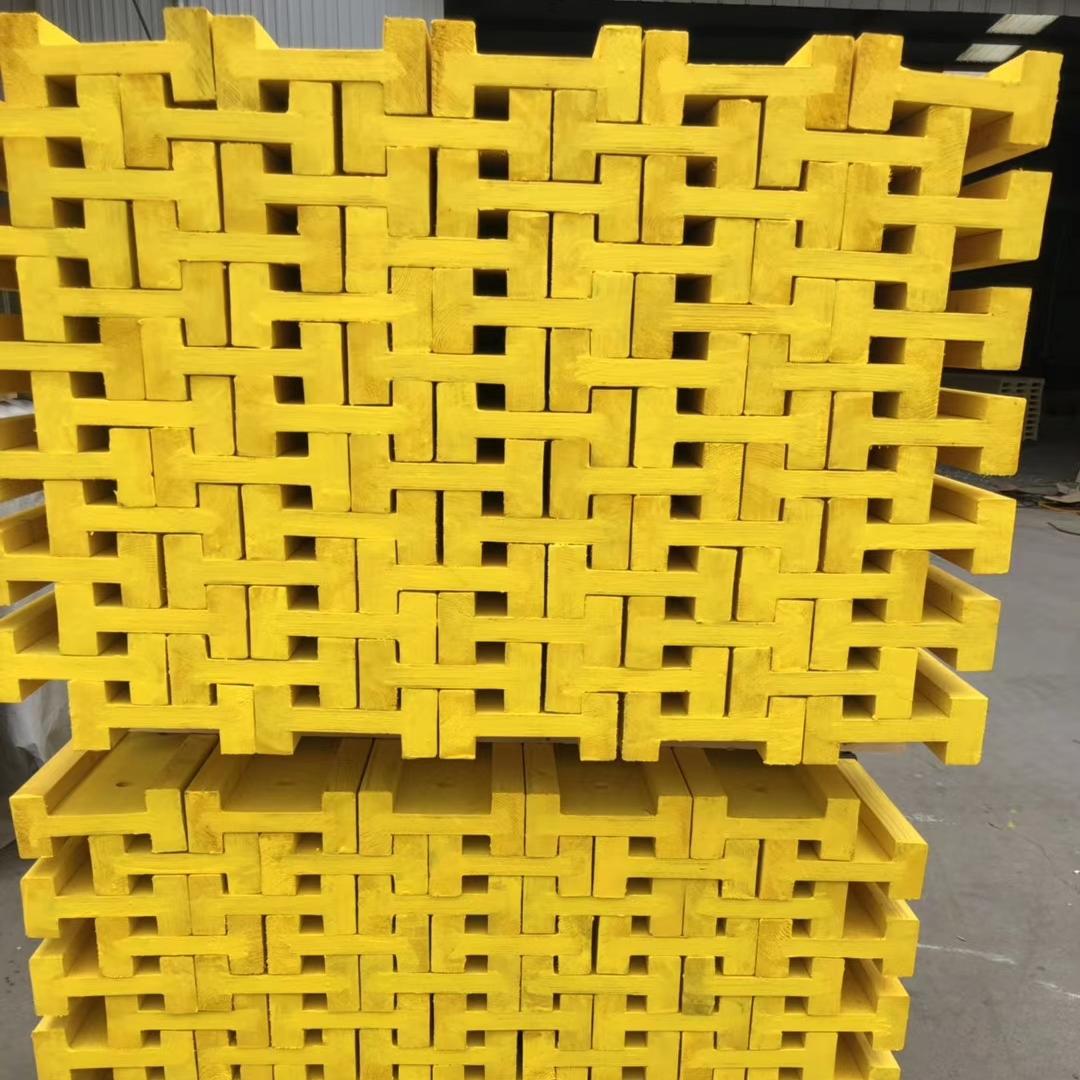

    i joist flange (65)

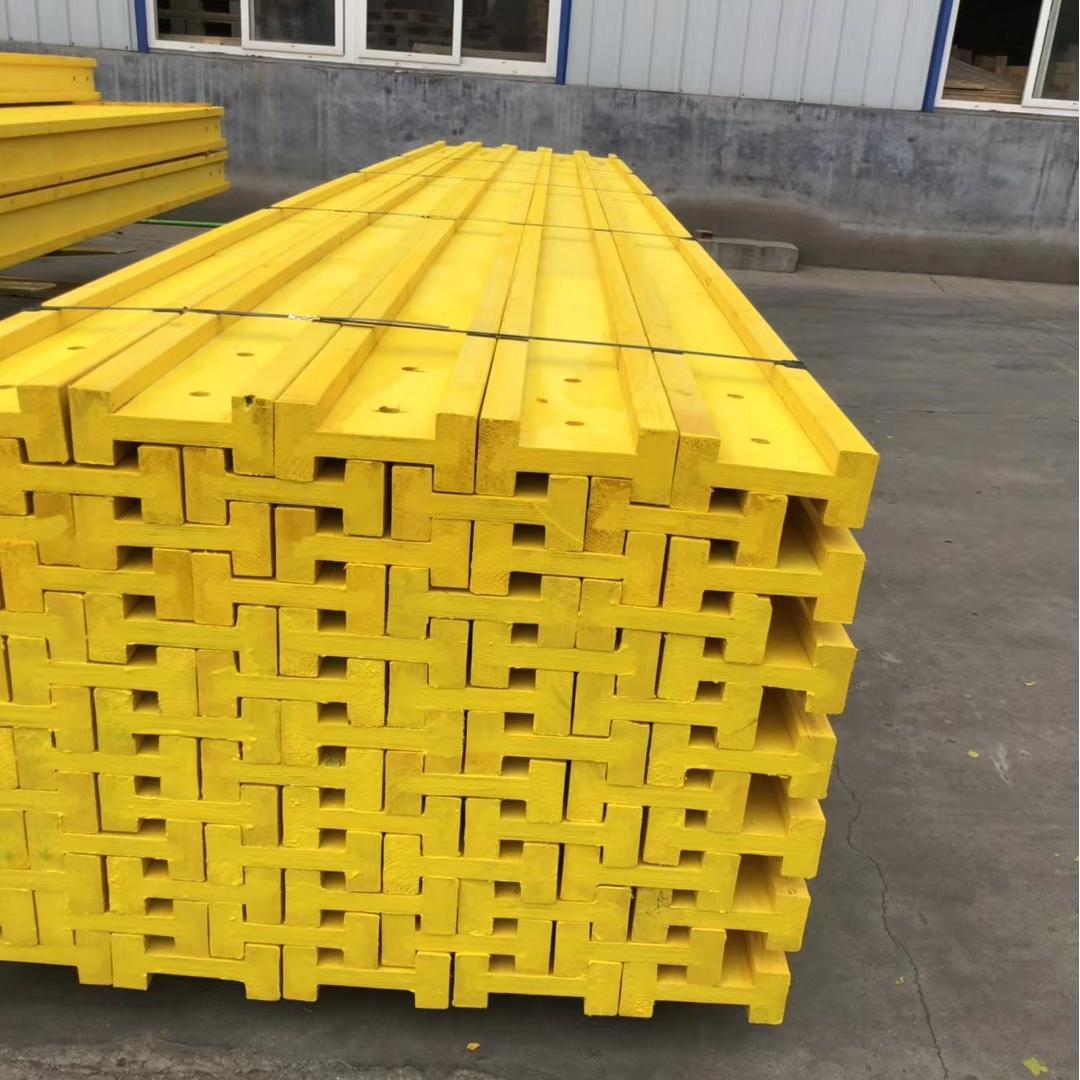

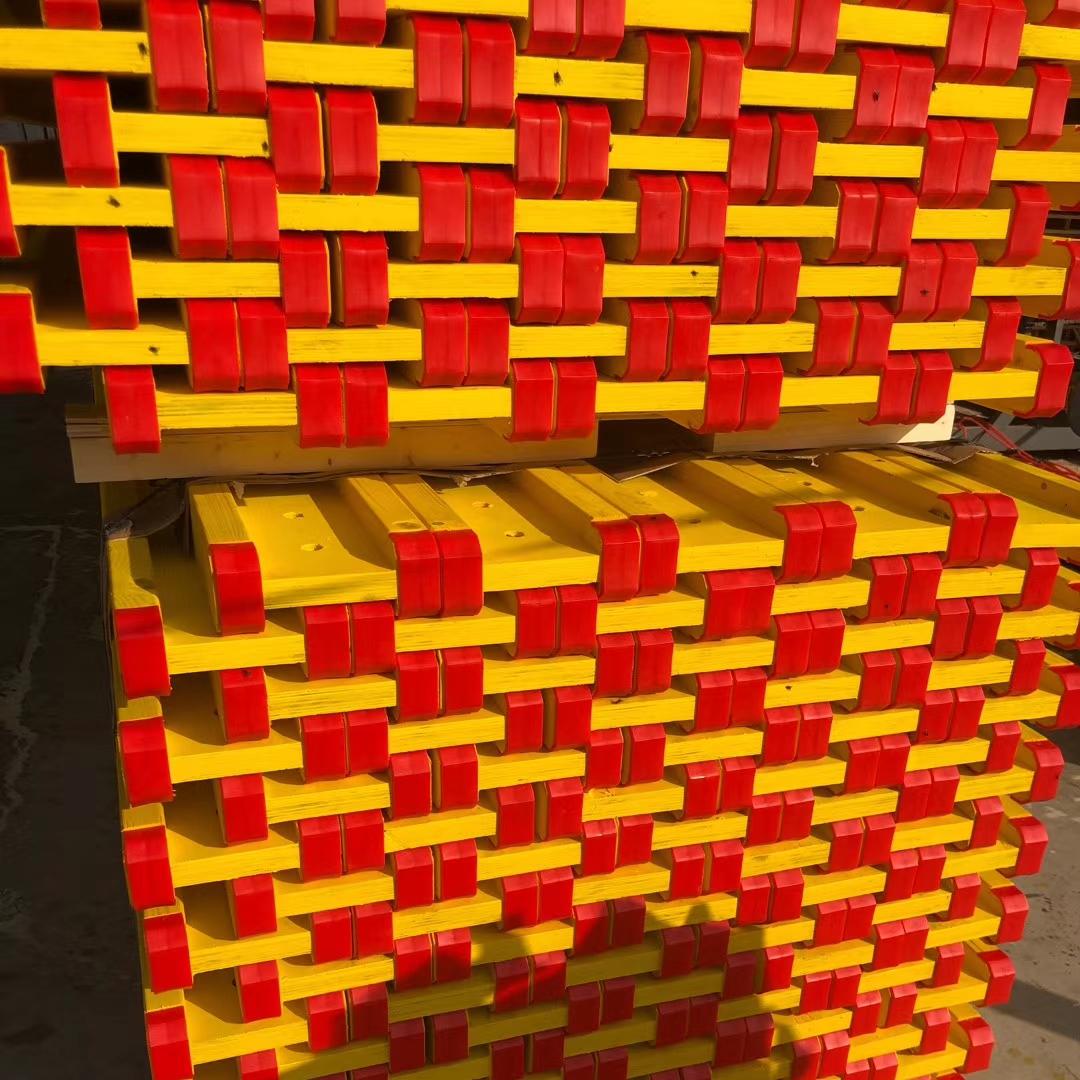

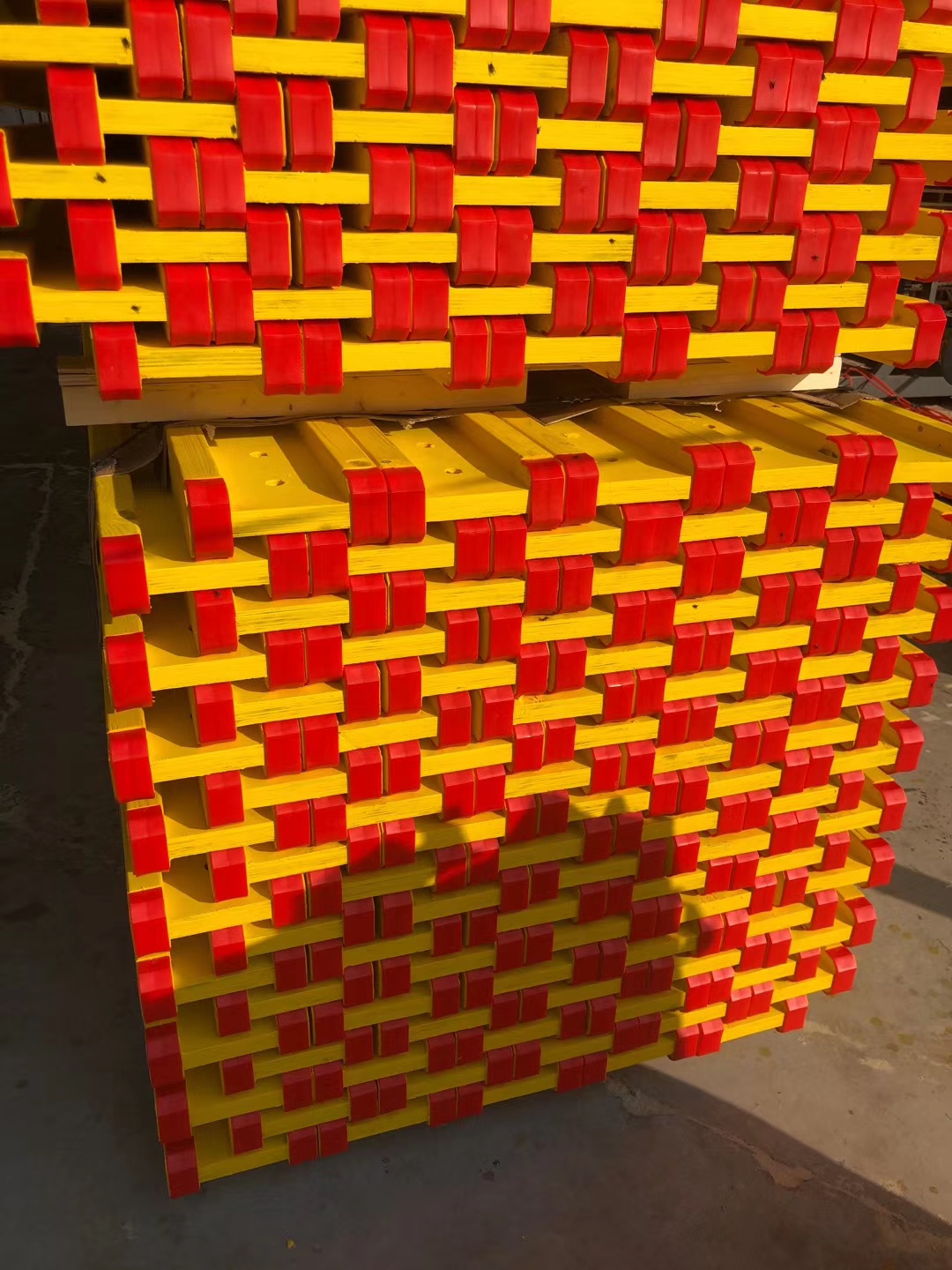

    i joist flange (30)

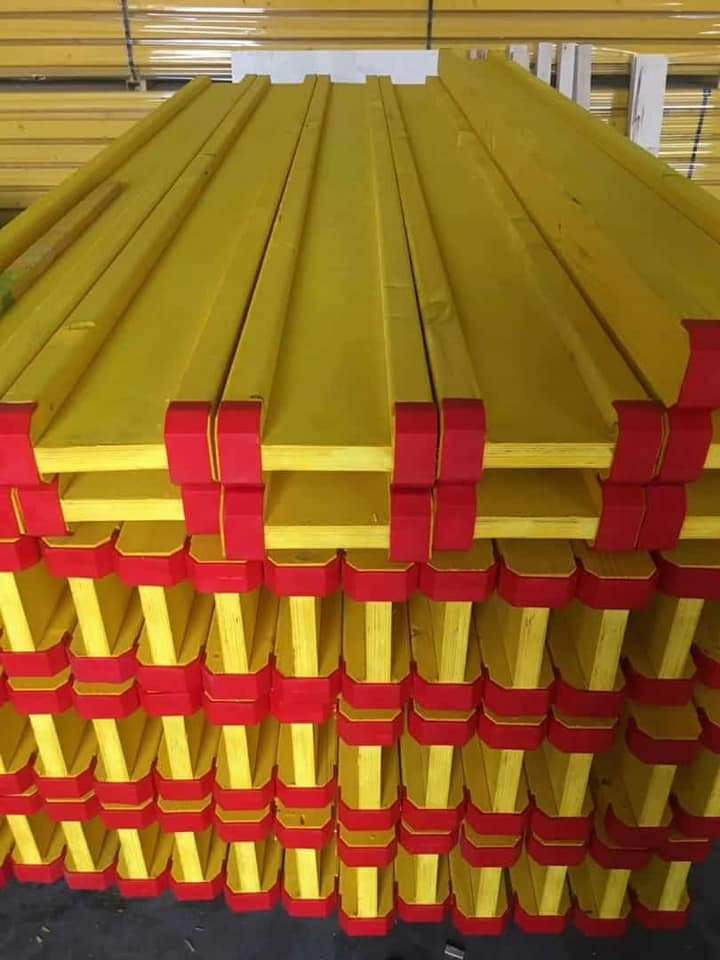

    1637026643501

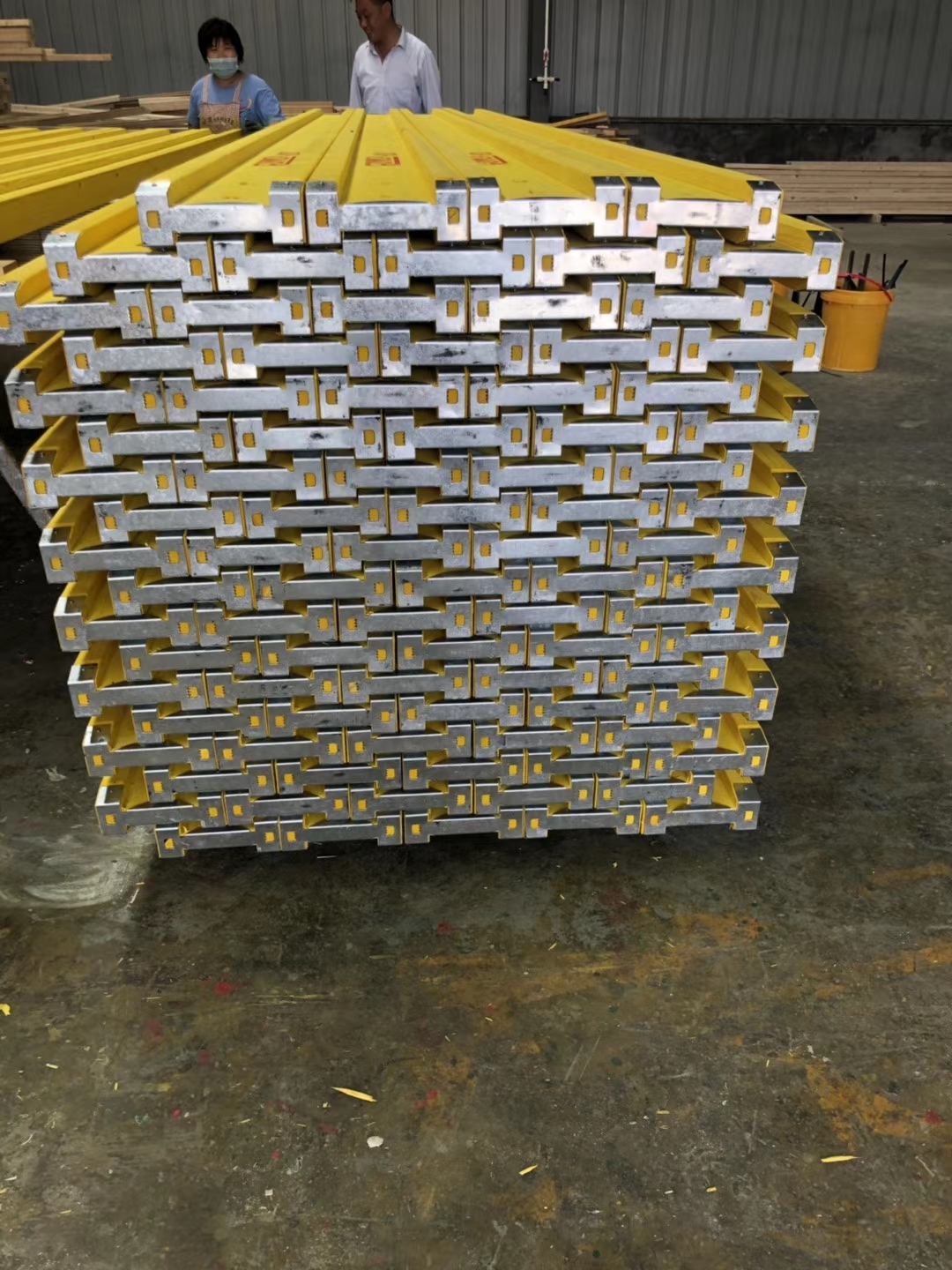

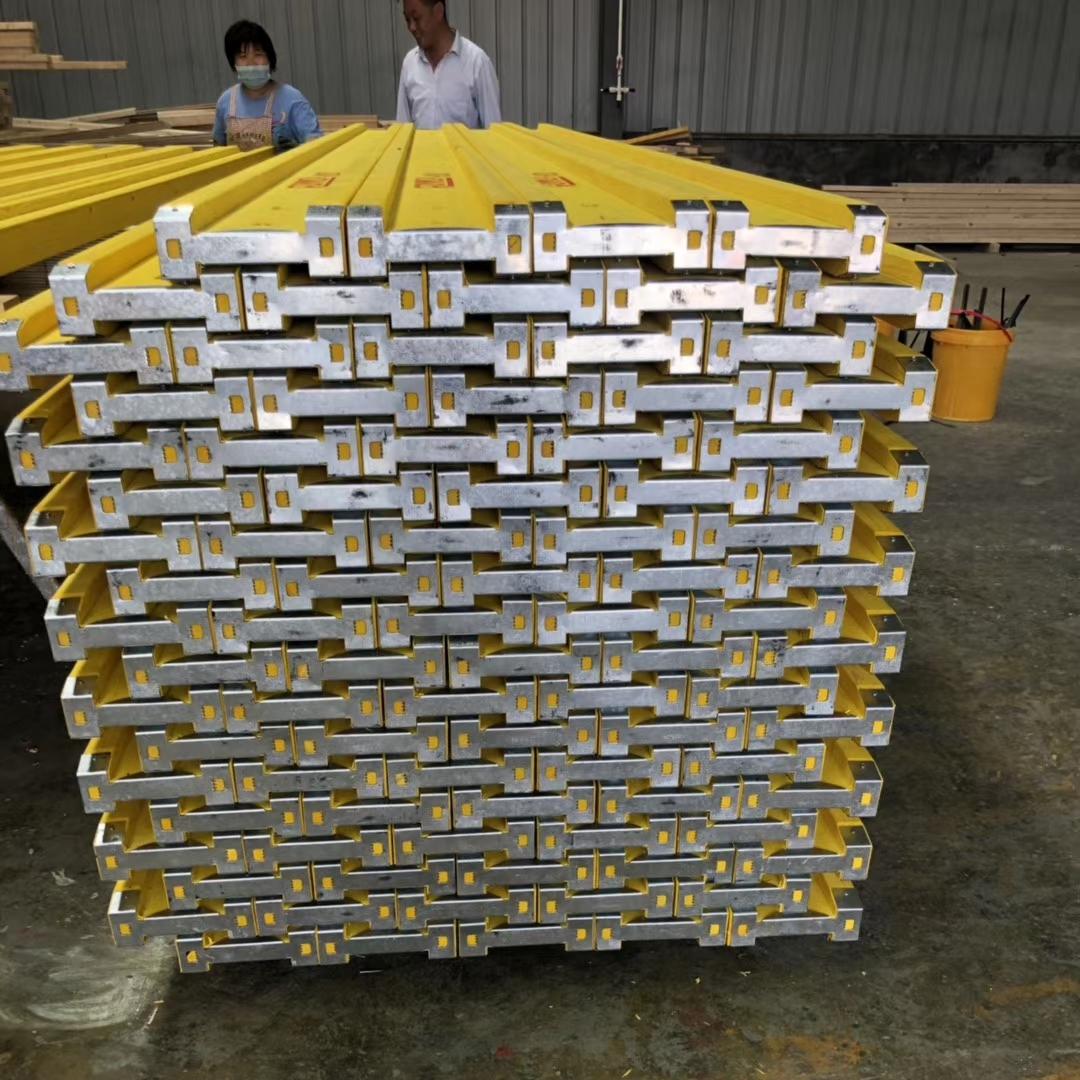

    1637026644441

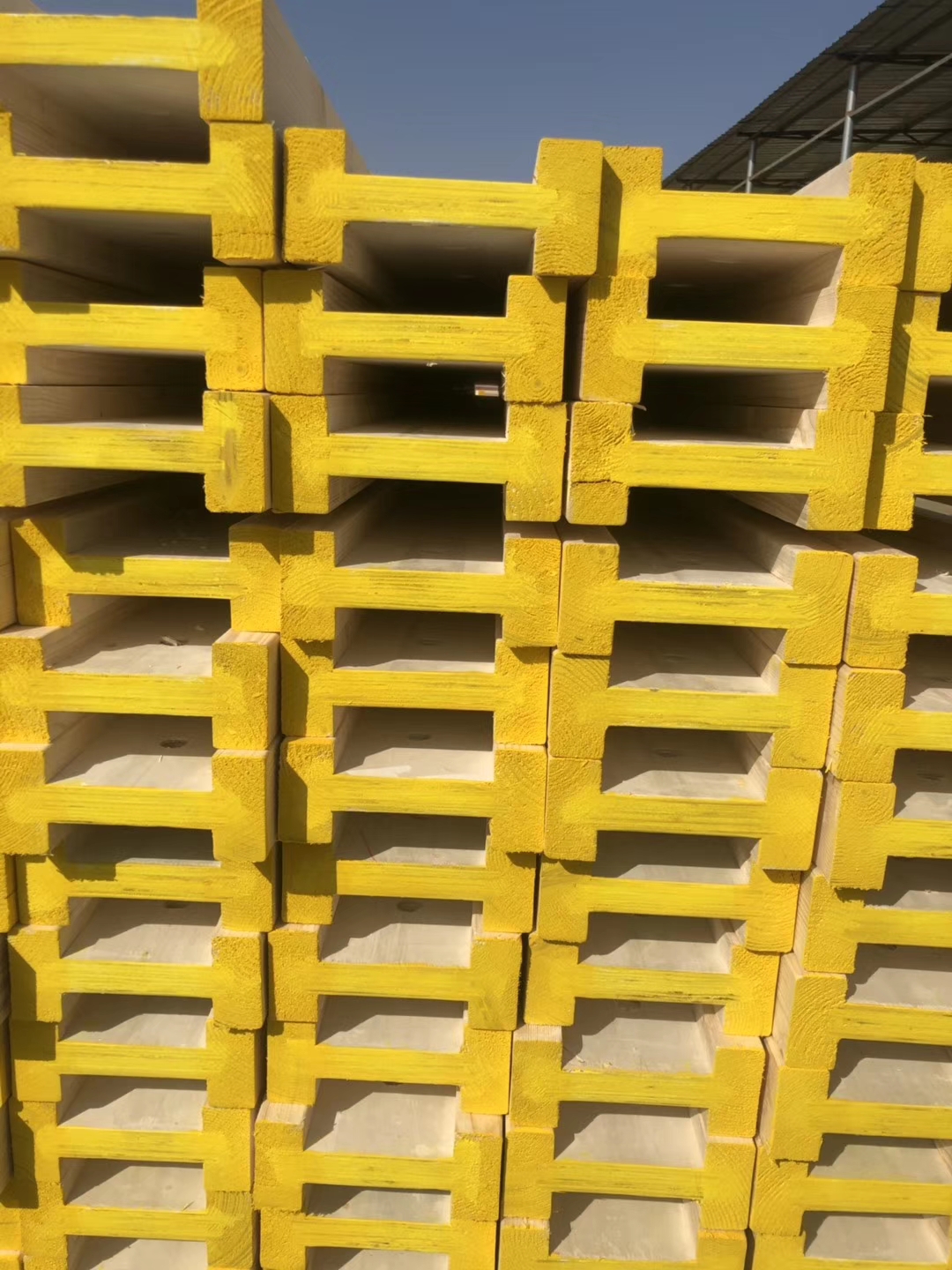

    1637026644129

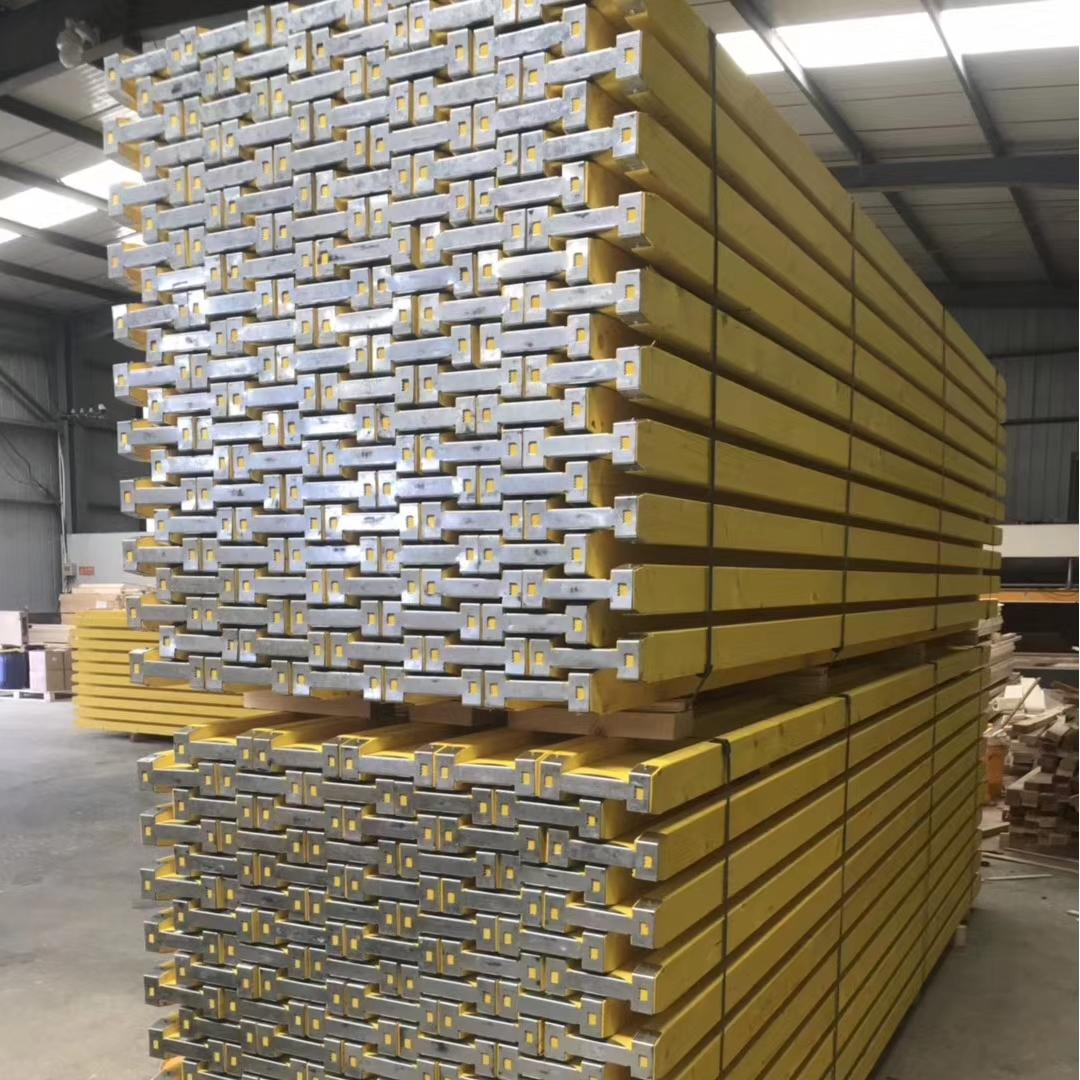

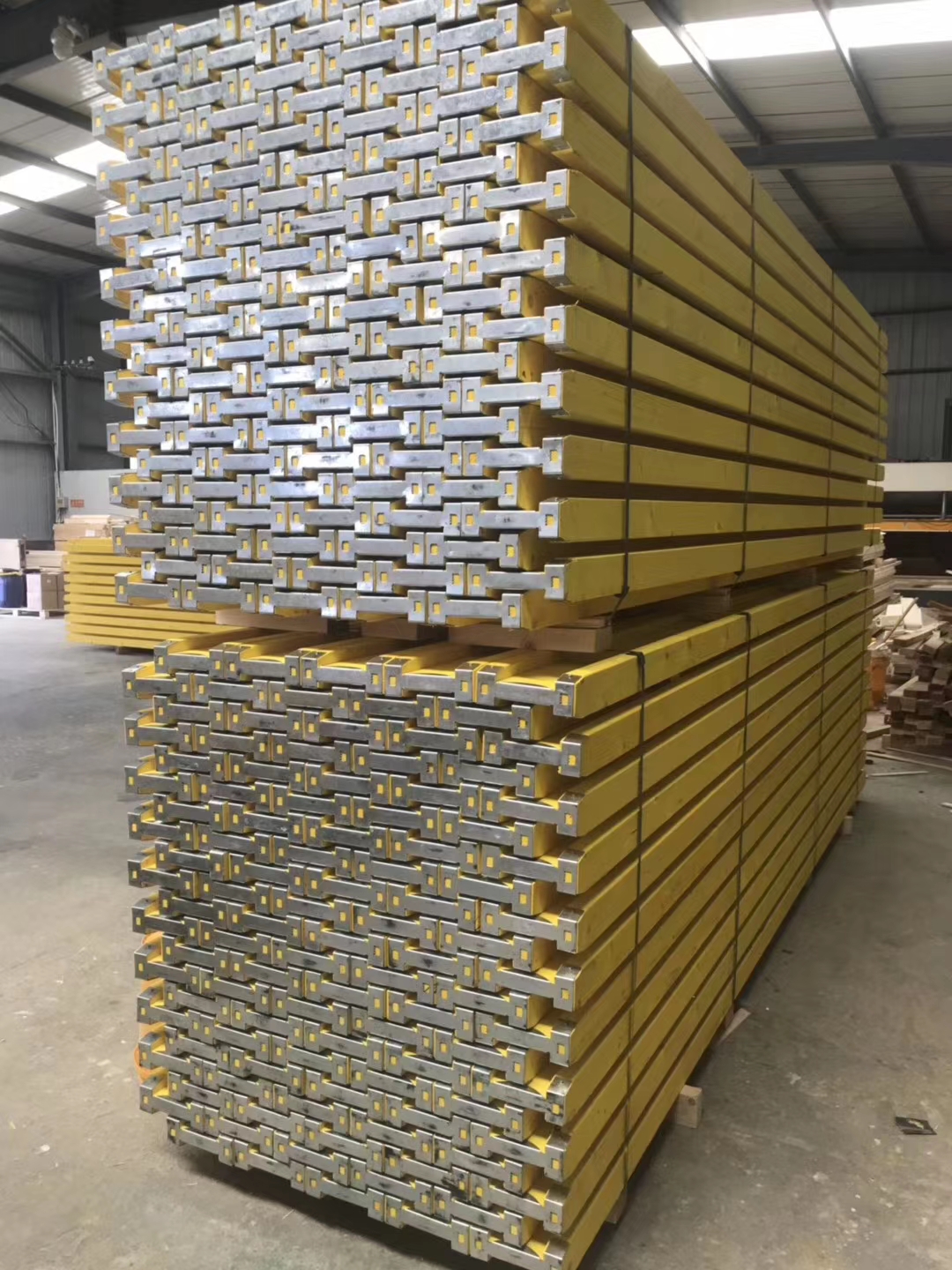

    1637026644500

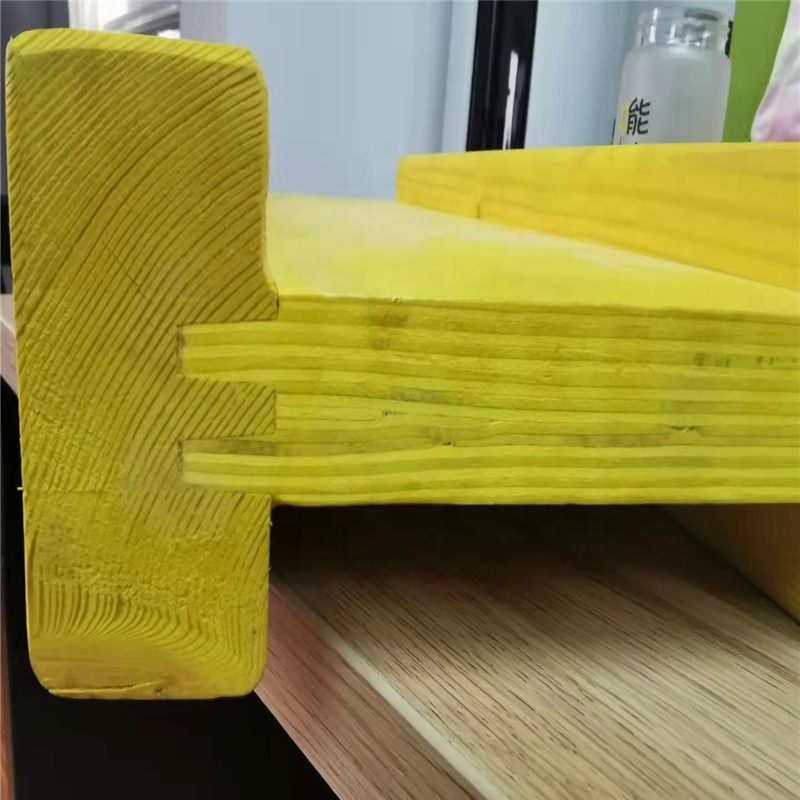

    photobank (33)

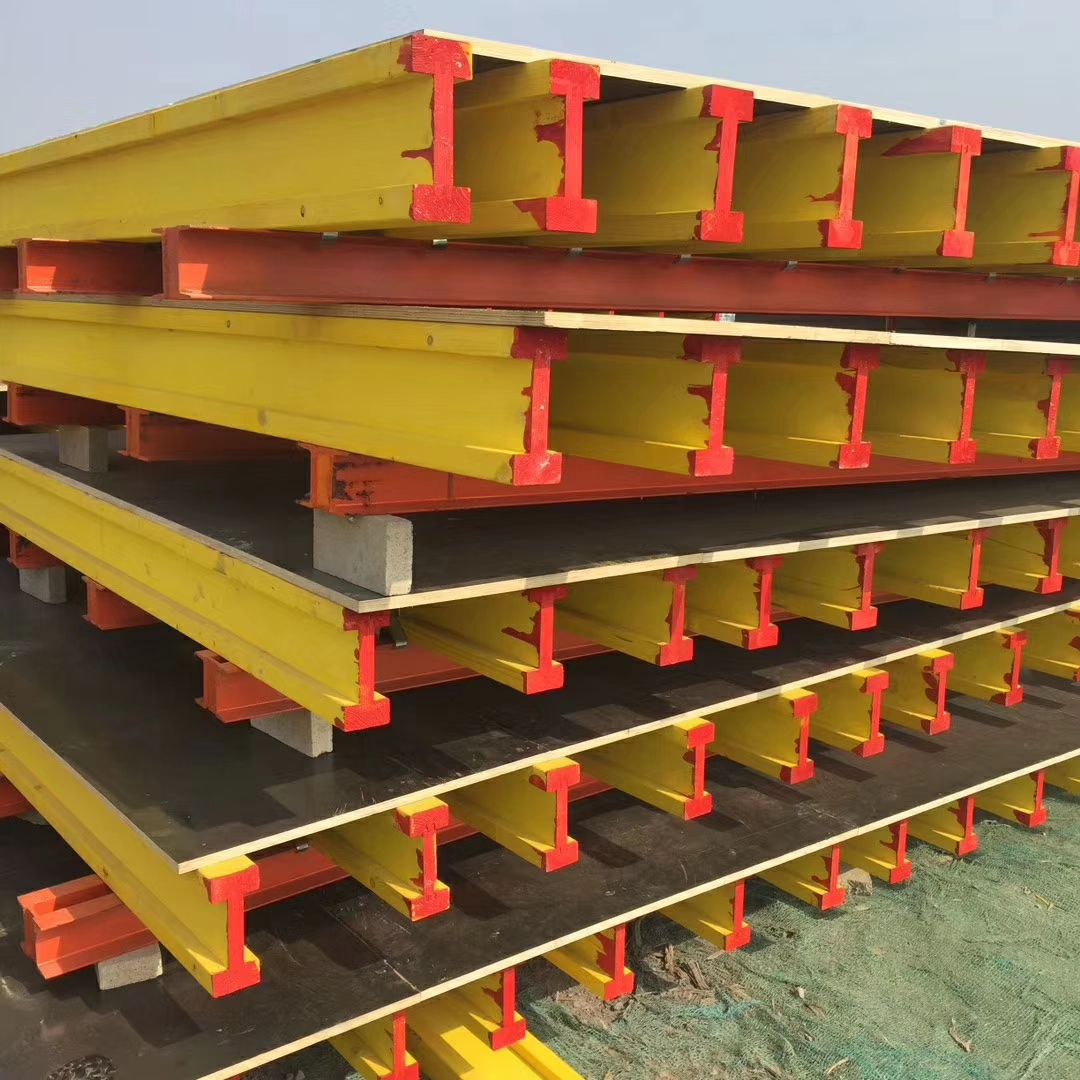

    1637026643717

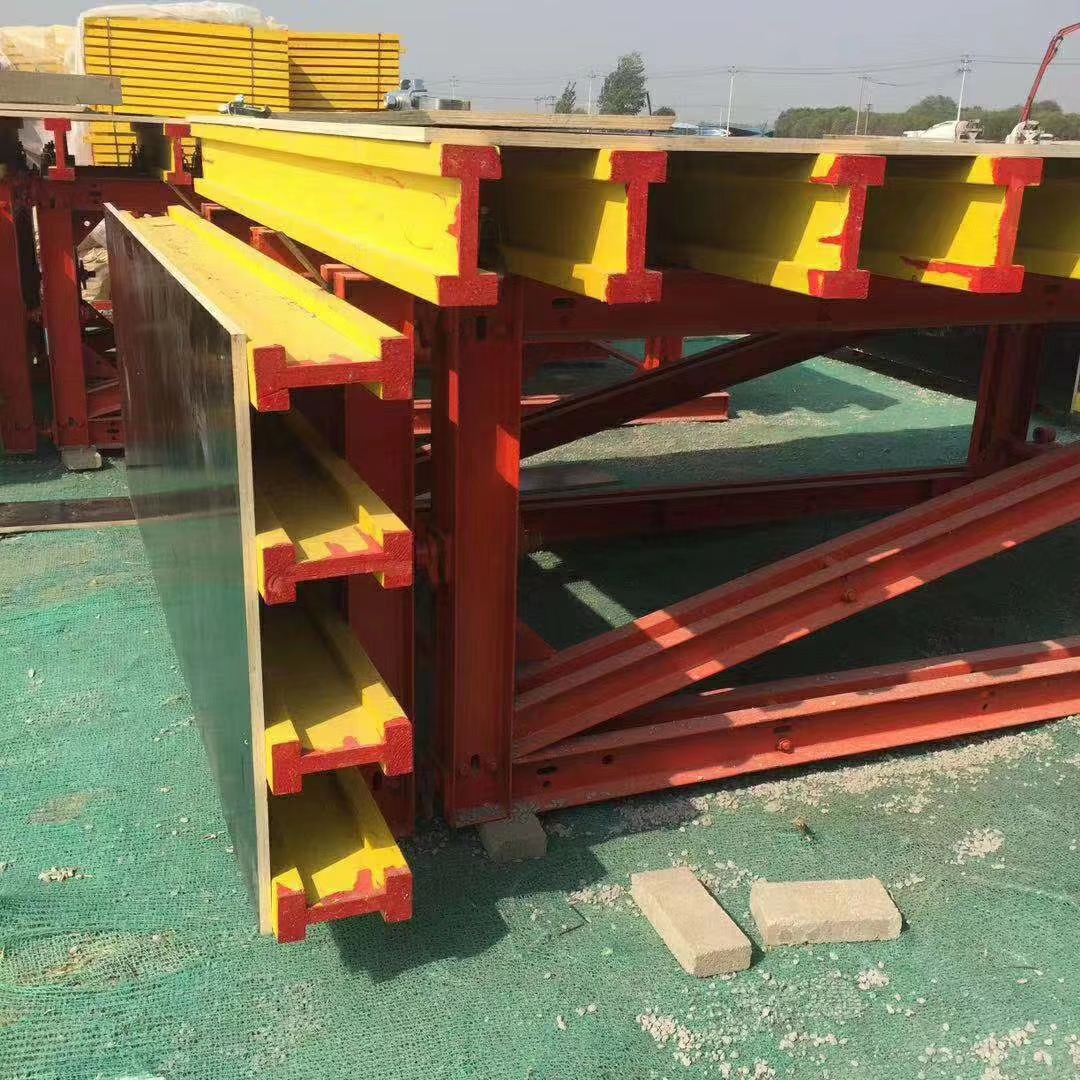

    1637026643686

    Package

     Packing Details  : 1) Inner packing: Inside pallet is wrapped with a 0.20mm plastic bag
                                  2) Outer packing: Pallets are covered with 3mm package plywood and then steel tapes                                        for  strengthening;
    Delivery Details : 15-20days receving the advanced payment
